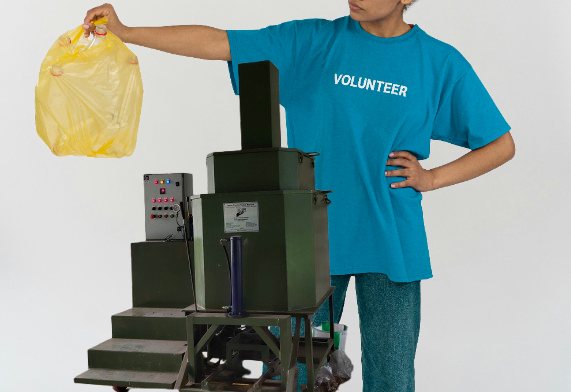

I. Machine Overview
Model Name: SM4AAx/DRI-KE/2024
Technology: Patented WPPM Technology (Waste Plastic Product Machine)
Products Manufactured: Plastic bricks, paver blocks, road dividers, tree guards, and tiles etc.
II. Input Specifications
Raw Material: Mixed municipal plastic waste (up to 150 microns)
Plastic Types Supported: Packaging materials, carry bags, wrappers, multilayer plastics
III. Additional Features
Customizable Molds: Allows production of bricks, paver blocks, and other items
Low Maintenance Design: Simplified cleaning and part replacement
IV. Power Requirements
Voltage: 415–440 V, Three-Phase
Power Consumption: 12 kW/hr (approx.)
Control System: User-friendly Control Panel
X. Environmental Impact
Eco-Friendly Design: Reduces plastic pollution and promotes recycling
Low Noise Operation: Suitable for residential areas
VI. Warranty & Support
Warranty: 1 Year from installation
AMC Available: Offer Annual Maintenance Contracts for extended service support.
VIII. Materials Used
Frame Material: Stainless Steel (SS) and Mild Steel (MS)
Coating: Anti-corrosive industrial-grade finish
IX. Certifications
Patented WPPM Technology : Issued in 2022
Compliance: ISO Certified Manufacturing Standards
V. Dimensions & Weight
Length: 6 ft | Width: 5 ft | Height: 8 ft
Weight: 300–500 kg (depending on configuration)
X. Delivery Timeline of Machine
01 Machine: 15 days delivery.
1–3 Machines: 21–30 days delivery.
Bulk Machines Orders: 30–45 days delivery.
XI. Processing Parameters
Temperature Range: 225°C–260°C
Hydraulic Pressure: Integrated for molding and compression
Operation Time: 5–10 minutes per cycle per product.
VII. Safety Features
a. Emergency Stop Button
b. MCB Connected Control Panel for overload protection
c. Earthing Provisions for operational safety
d. Protective Gear: Gloves and masks recommended for operators
XII. Installation Requirements
Space Required: Minimum 800–1000 sq. ft. operational area
Workforce Needed: 2–3 operators for semi-automatic machine setup
9. Contact Information
Deshmukh Research Industries (DRI)
Email: contact@dri-bharat.co.in
Phone: +91-9834929474
Website: www.dri-bharat.co.in
